Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | JUNSON |
| Orzecznictwo: | CE/ROHS/FCC |
| Numer modelu: | JS-135F |
Zapłata:
| Minimalne zamówienie: | 10pcs |
|---|---|
| Cena: | Zbywalny |
| Szczegóły pakowania: | Zapakowany w karton |
| Czas dostawy: | 2-7 dni roboczych po otrzymaniu płatności |
| Zasady płatności: | T/T, PayPal lub Zachodnia Związek z góry |
| Możliwość Supply: | 30 000 pCS miesięcznie |
|
Szczegóły informacji |
|||
| Model: | JS-135F | Nazwa produktu: | Uderzenie elektryczne |
|---|---|---|---|
| Funkcja: | Upadek bezpieczny | NC-Bez typu: | Nastawny |
| Zasilacz: | 12v | Wyjście sygnału: | Nie dotyczy |
| Struktura uderzenia: | Odlewanie cynku | Trzymanie siły: | 800 kg |
opis produktu

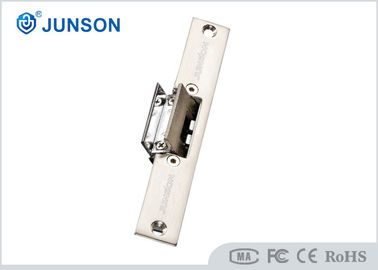

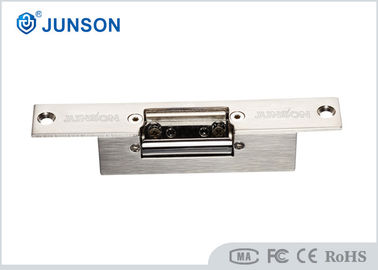

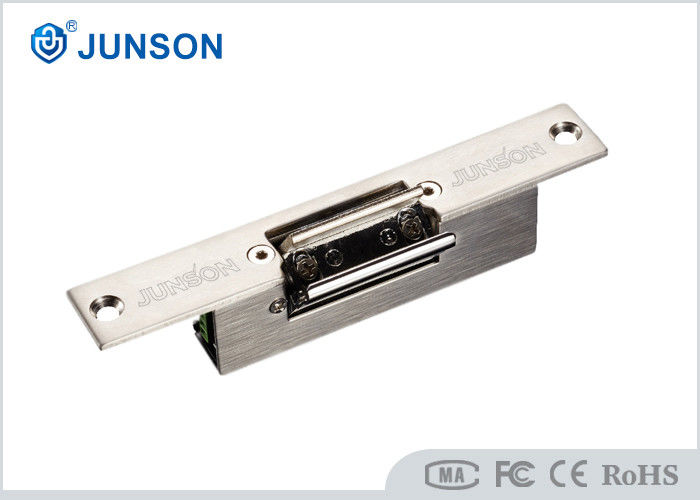

Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force
JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.
Parameters:
|
Lock Dimension |
160Lx25Wx31H(mm) |
| Weight | 0.4kg |
|
Standard Packing |
60pcs |
| Cartons size | 54L * 20W * 30.5H (cm) |
|
Holding Strength |
800kg |
|
Style |
Fail Safe |
|
Voltage |
12V DC |
|
Current |
200mA |
|
Available lock |
Rim lock, mechanical lock |
|
Suitable for |
Narrow wooden door, narrow metal door |
|
Special design |
Adjust lock tongue to NO type |
|
Surface Temp |
Within + 20℃ |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
Coating nickel |
|
Strike Structure |
Stainless Steel |
Features:
-
High Holding Force: Supports up to 800kg.
-
Durable Materials: Constructed with aluminum housing and stainless steel bolt.
-
Reliable Performance: Tested to over 1,000,000 cycles for long-term use.
-
Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.
